Accessories for PiL ultrasonic sensors, ultrasonic barriers and sensor heads

Extended application possibilities and easy installation

Zubehoer - Deflection reflectors for 90° deflection of the sound beam, with or without focusing
- Sound tubes for sound deflection in openings with small diameters
- TeachIn button for teaching ranges and switching points, P43 series
- Connector, cables and mounting material

Accessories P42 series

Deflection reflectors for sensors with M18 external thread, 18mm diameter

Deflector reflector

Reflector-M18-plastic-90degree

Screw-on 90° plastic reflector for M18 thread

Deflector reflector direct

Reflector M18 metal direct

90° reflector and mounting bracket made of stainless steel for M18 thread

Deflector reflector focused

Reflector M18 metal focused

90° reflector and mounting bracket made of stainless steel for M18 thread

Deflection reflectors for sensors with M30 external thread, 30mm diameter

Deflector reflector

Reflector-M30-plastic-90degree

90° plastic reflector for M18 thread

Deflector reflector direct

Reflector M30 metal direct

90° reflector and mounting bracket made of stainless steel for M30 thread

Deflector reflector focused

Reflector M30 metal focused

90° reflector and mounting bracket made of stainless steel for M30 thread

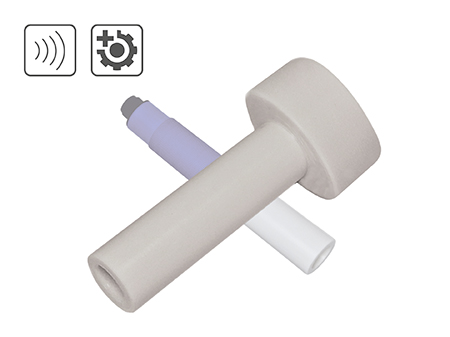

Sound tube for sensors with M12, M18 and M30 thread

Sound tube

Sound tube M12 metall

Sound tube M12 for P43-25 sensors

Sound tube

Sound tube M18

Sound tube M18 for P43-40, P47-50, P49-40

Sound tube

Sound tube M30

Sound tube M30 for P42 sensors and sensor heads

Teach-In Adapter, connectors, cables

Teach-In Adapter

TeachIn Adapter P43 series

Setting device for sensing range and switching points of P43 devices

Sensor/ Aktuator Connection cable

Connector M12 A-kodiert, 2 Meter

Connection cable M12-A, 5pol. 2 Meter

Sensor/ Aktuator Connection cable

Connection cable with angled connector M12-A. 5pol

Connection cable angled connector M12-A, 5pol. 2 Meter

5 Pin, straight M12-A female connector

M12 female connector, 5 Pin, screw terminal connection

M12 female connector, 5 Pin, screw terminal connection

5 Pin, angled M12-A female connector

M12 female connector, 5 Pin, screw terminal connection

M12 female connector, 5 Pin, screw terminal connection

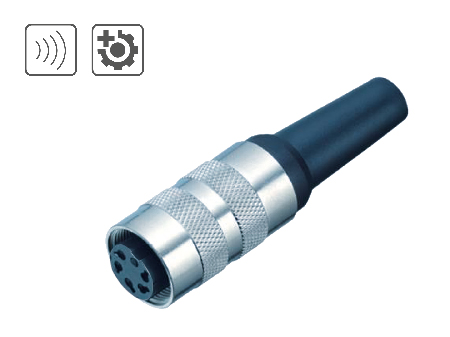

M16, straight female connector

7 Pin M16 female connector, soldering connection

7 Pin M16 female connector, soldering connection

M16, straight female connector

M16 8Pin female connector

8 Pin M16 female connector, soldering connection

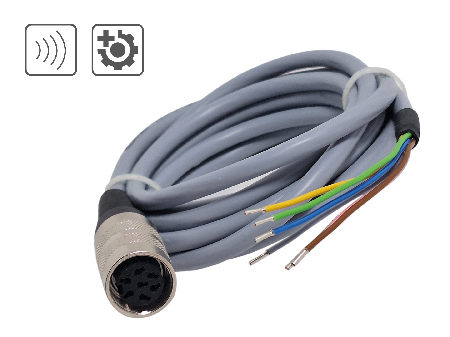

Sensor connection cable

Connection cable with 7 Pin M16 plug connector

Connection cable with M16 connector, 7-pin, 2 to 20 meters

Sensor connection cable

Connection cable with M16 8 Pin connector

Connection cable with M16 plug connector, 8-pin, 3 to 10 meters

* Other cable lengths, cable types, connectors and special assemblies on request

Mounting accessories, holders

Mounting bracket

Sensor holder M12 metal

Mounting bracket M12, metal

Mounting clamp

Plastic clamping bracket M18

Mounting clamp M18, plastics

Mounting clamp

Plastic clamping bracket M30

Clamping block M30, plastic

Accessories P42 series

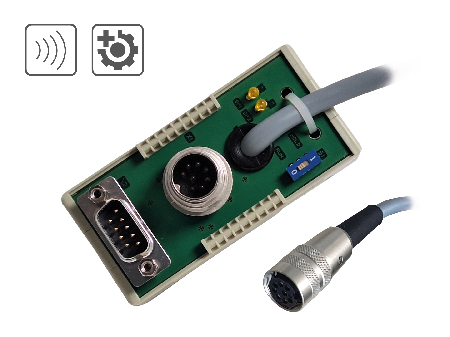

RS232 Programming adapter

RS232 Programming adapter P42 series

DIN rail - Programming adapter P42 series

RS232 to RS485 Adapter

RS232-RS485 Adapter P42 series

DIN rail - Interface adapter P42 series

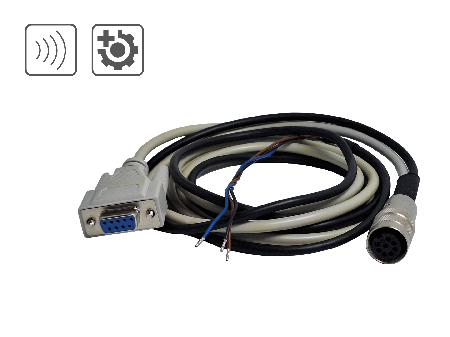

RS232 Programming cable

RS232 Programming cable series P42

Programming cable, RS232 for P42 series
