P49 Series Economy Sensors

For universal applications

The P49 economy series from PiL Sensoren GmbH can be used flexibly and covers numerous industrial applications.The Economy sensors also offer high reliability and precision. They are robust and can be used in demanding environments. The sensors are available from stock and can be delivered and used quickly. This reduces downtimes and speeds up the implementation of projects.

Key features

  • Detecting ranges up to 6 m
  • Easy integration
  • Wide field of application
  • Good price-performance ratio

Application examples

  • Distance measurement
  • Diameter measurement
  • Level control
  • Object detection
Design
Detecting range
Output
Setting
IP rating
Connection
reset filter

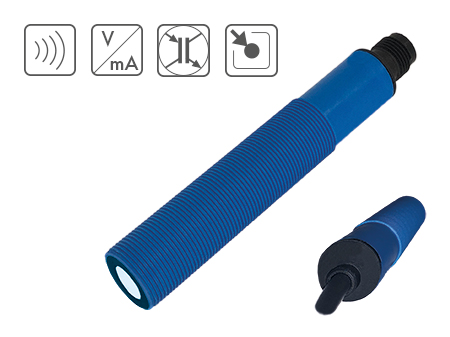

P49-40-M18

P49-40-M18

Basic ultrasonic sensor in M18 housing for standard applications, with one switching point or fixed analog characteristic curve. The switching point can be repeatedly taught-in in just 2 seconds.

24h-quote
SeriesP49
Design M18
Detecting range
30 - 400 ,
Output
NPN NO/NC , PNP NO/NC , 0 - 10V , NPN NO ,
Setting
adjustable, Teach-In,
IP rating IP67
Connection
M12 connector ,
Data sheet
Download PDF Datasheet P49-40-M18
more information
Download .step CAD Modell

Reflector deflector M18



M18 deflector reflector internal thread Data sheet

Sound tube



Sound tube-BS-M18-PE-I11 Data sheet

Reflector deflector M18



Ultrasonic reflector deflector M18 90 degrees Data sheet

Reflector deflector M18 focussed



Ultrasonic reflector deflector focussed M18 90 degrees Data sheet

Cable plug M12 5pol, 2m



M12 female connector 5pol straight with cable 2 Meter Data sheet

Cable plug M12 5pol, 2m



M12 female connector 5pol angled with cable 2 Meter Data sheet

Mounting clamp M18



Mounting-Clamp-M18 Data sheet

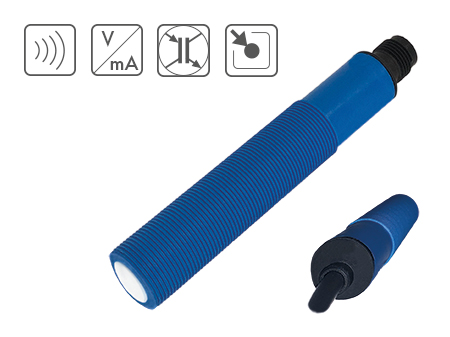

P49-50-M18

P49-50-M18

Basic ultrasonic sensor in M18 housing with short range for standard applications, with one switch point or fixed analog characteristic curve. The switching point can be repeatedly taught-in in just 2 seconds.

24h-quote
SeriesP49
Design M18
Detecting range
60 - 500 ,
Output
NPN NO/NC , PNP NO/NC , 0 - 10V , 4 - 20mA ,
Setting
Teach-In, adjustable,
IP rating IP67
Connection
M12 connector ,
Data sheet
Download PDF Datasheet P49-50-M18
more information
Download .step CAD Modell

Reflector deflector M18



M18 deflector reflector internal thread Data sheet

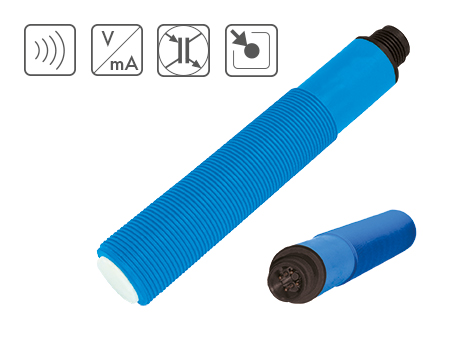

P49-80-M18

P49-80-M18

Basic ultrasonic sensor in M18 housing with mid-range for standard applications, with a switching point or fixed analog characteristic curve. The switching point can be repeatedly taught-in in just 2 seconds.

24h-quote
SeriesP49
Design M18
Detecting range
100 - 800 ,
Output
0 - 10V , 4 - 20mA , NPN NO/NC , PNP NO/NC ,
Setting
Teach-In, adjustable,
IP rating IP67
Connection
Cable, M12 connector ,
Data sheet
Download PDF Datasheet P49-80-M18
more information
Download .step CAD Modell

Reflector deflector M18



Ultrasonic reflector deflector M18 90 degrees Data sheet

Reflector deflector M18 focussed



Ultrasonic reflector deflector focussed M18 90 degrees Data sheet

Cable plug M12 5pol, 2m



M12 female connector 5pol straight with cable 2 Meter Data sheet

Cable plug M12 5pol, 2m



M12 female connector 5pol angled with cable 2 Meter Data sheet

Mounting clamp M18



Mounting-Clamp-M18 Data sheet

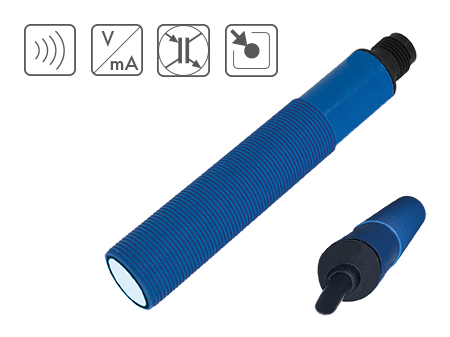

P49-160-M18

P49-160-M18

Basic ultrasonic sensor in M18 housing with mid-range for standard applications, with a switching point or fixed analog characteristic curve. The switching point can be repeatedly taught-in in just 2 seconds.

24h-quote
SeriesP49
Design M18
Detecting range
80 - 1600 ,
Output
0 - 10V , 4 - 20mA , NPN NO/NC , PNP NO/NC ,
Setting
Teach-In, adjustable,
IP rating IP65
Connection
Cable, M12 connector ,
Data sheet
Download PDF Datasheet P49-160-M18
more information
Download .step CAD Modell

Reflector deflector M18



Ultrasonic reflector deflector M18 90 degrees Data sheet

Reflector deflector M18 focussed



Ultrasonic reflector deflector focussed M18 90 degrees Data sheet

Cable plug M12 5pol, 2m



M12 female connector 5pol straight with cable 2 Meter Data sheet

Cable plug M12 5pol, 2m



M12 female connector 5pol angled with cable 2 Meter Data sheet

Mounting clamp M18



Mounting-Clamp-M18 Data sheet

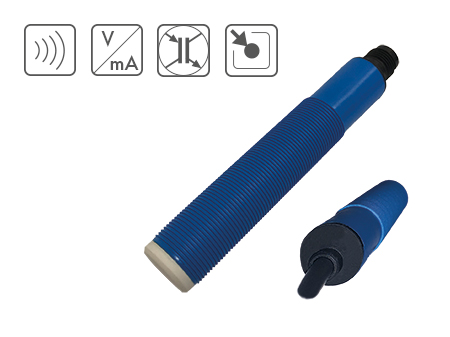

P49-200-M18

P49-200-M18

Basic ultrasonic sensor for longer ranges in M18 housing for standard applications, with a switching point or fixed analog characteristic curve. The switching point can be repeatedly taught-in in just 2 seconds.

24h-quote
SeriesP49
Design M18
Detecting range
200 - 2000 ,
Output
0 - 10V , 4 - 20mA , NPN NO/NC , PNP NO/NC ,
Setting
Teach-In, adjustable,
IP rating IP67
Connection
M12 connector ,
Data sheet
Download PDF Datasheet P49-200-M18
more information
Download .step CAD Modell

Reflector deflector M18



Ultrasonic reflector deflector M18 90 degrees Data sheet

Reflector deflector M18 focussed



Ultrasonic reflector deflector focussed M18 90 degrees Data sheet

Cable plug M12 5pol, 2m



M12 female connector 5pol straight with cable 2 Meter Data sheet

Cable plug M12 5pol, 2m



M12 female connector 5pol angled with cable 2 Meter Data sheet

Mounting clamp M18



Mounting-Clamp-M18 Data sheet

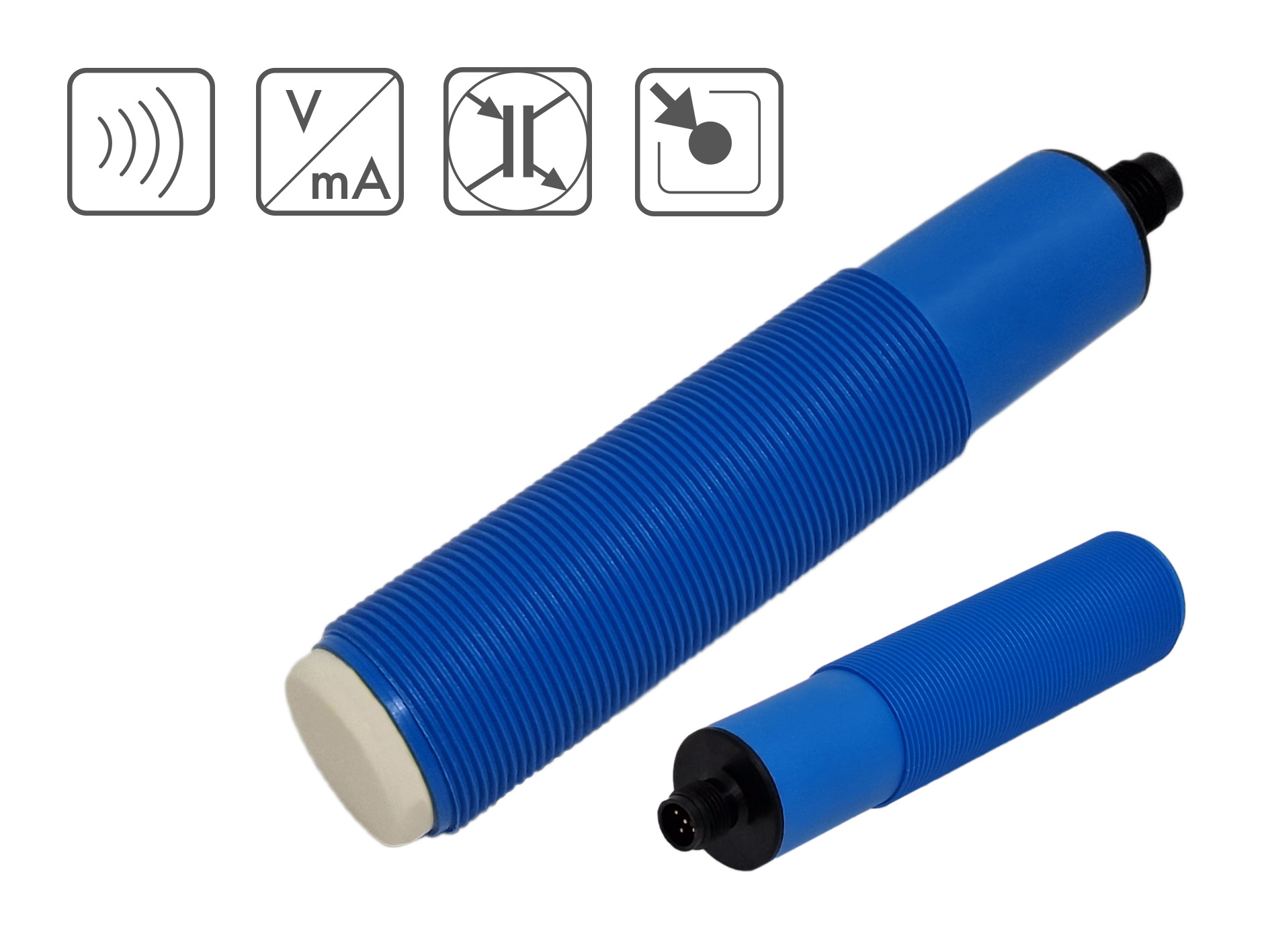

P49-350-M30

P49-350-M30

Basic ultrasonic sensor for longer ranges in M30 housing for standard applications, with a switching point or fixed analog characteristic curve. The switching point can be repeatedly taught-in in just 2 seconds.

24h-quote
SeriesP49
Design M30
Detecting range
350 - 3500 ,
Output
0 - 10V , 4 - 20mA , NPN NO/NC , PNP NO/NC ,
Setting
Teach-In, adjustable,
IP rating IP67
Connection
M12 connector ,
Data sheet
Download PDF Datasheet P49-350-M30

Deflecting reflector



Deflecting reflector M30, plastics Data sheet

Reflector deflector M30



Ultrasonic reflector deflector M30 90 degrees Data sheet

Reflector deflector M30 focussed



Ultrasonic reflector deflector focussed M30 90 degrees Data sheet

Cable plug M12 5pol, 2m



M12 female connector 5pol straight with cable 2 Meter Data sheet

Cable plug M12 5pol, 2m



M12 female connector 5pol angled with cable 2 Meter Data sheet

Mounting clamp M30



Mounting-Clamp-M30 Data sheet

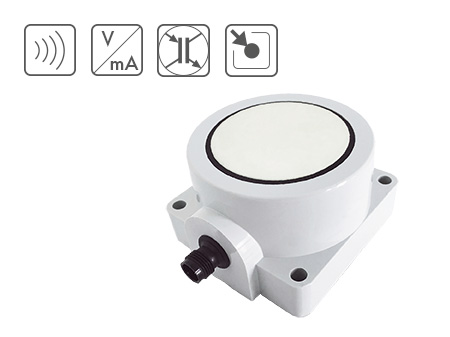

P49-600-Q50

P49-600-Q50

Basic ultrasonic sensor for long ranges in Q50 housing for standard applications, with a switching point or fixed analog characteristic curve. The switching point can be repeatedly taught-in in just 2 seconds.

24h-quote
SeriesP49
Design 80x80x50
Detecting range
600 - 6000 ,
Output
0 - 10V , 4 - 20mA , NPN NO/NC , PNP NO/NC ,
Setting
Teach-In, adjustable,
IP rating IP65
Connection
M12 connector ,
Data sheet
Download PDF Datasheet P49-600-Q50
more information
Download .step CAD Modell

Cable plug M12 5pol, 2m



M12 female connector 5pol straight with cable 2 Meter Data sheet

Cable plug M12 5pol, 2m



M12 female connector 5pol angled with cable 2 Meter Data sheet
